COUPLING FLENDER

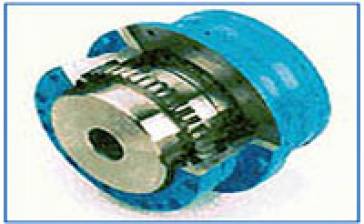

ZAPEX-ZW Universal Gear Coupling Oil or Grease LubricatedZAPEX gear couplings of the ZW series are made out of high-quality quenched and tempered steel and are manufactured according to the modular design system. The external gear teeth of the hubs are hobbed in crowned design and thus, guarantee high flexibility at low circumferential backlash. The product range includes 31 sizes, 14 of which are on stock for a torque range of up to 250,000 Nm and max. bores up to 275 mm. Couplings up to 10,000,000 Nm can be offered in addition to the standard product range.
DescriptionZAPEX gear couplings of the ZW series are made out of high-quality quenched and tempered steel and are manufactured according to the modular design system. The external gear teeth of the hubs are hobbed in crowned design and thus, guarantee high flexibility at low circumferential backlash. The product range includes 31 sizes, 14 of which are on stock for a torque range of up to 250,000 Nm and max. bores up to 275 mm. Couplings up to 10,000,000 Nm can be offered in addition to the standard product range.
Features:
• double-jointed gear coupling which compensates
angular, parallel and axial misalignment of shafts;
• low restoring forces in case of shaft misalignment;
• long-term lubrication is ensured by design measures
and by using special seals;
• small dimensions; can be used for high shock loads;
with large safety reserves;
• suitable for both directions of rotation (reversing operation).
